Video verification cameras
Cameras expand security options. Thanks to the connection to the MyJABLOTRON app, you are in full control of your facility. The system automatically creates a minute-by-minute recording of every event from the JABLOTRON 100+ alarm, providing an instant overview.
Video sequences
Automatic recording 30 s before and 30 s after the alarm.
Record 3 and 7 days
Multiday log with alarm overview back 3 or 7 days.
Livestream
Live video from the camera that can be triggered at any time to verify the situation.
State-of-the-art technology
The cameras communicate via cloud storage where your data is safe. It can't be stolen or destroyed. All communication is encrypted and secure against misuse.
- Full HD colour video
- Wide camera angle up to 115°
- Infrared illumination in poor visibility
The cameras communicate via cloud storage where your data is safe. It can't be stolen or destroyed. All communication is encrypted and secure against misuse.
- Full HD colour video
- Wide camera angle up to 115°
- Infrared illumination in poor visibility
How cameras work in the JABLOTRON security system
The security system detects an alarm
The cameras are part of the JABLOTRON 100+ alarm system. They can automatically react to its status, whether it is an alarm, securing or disarming the object.

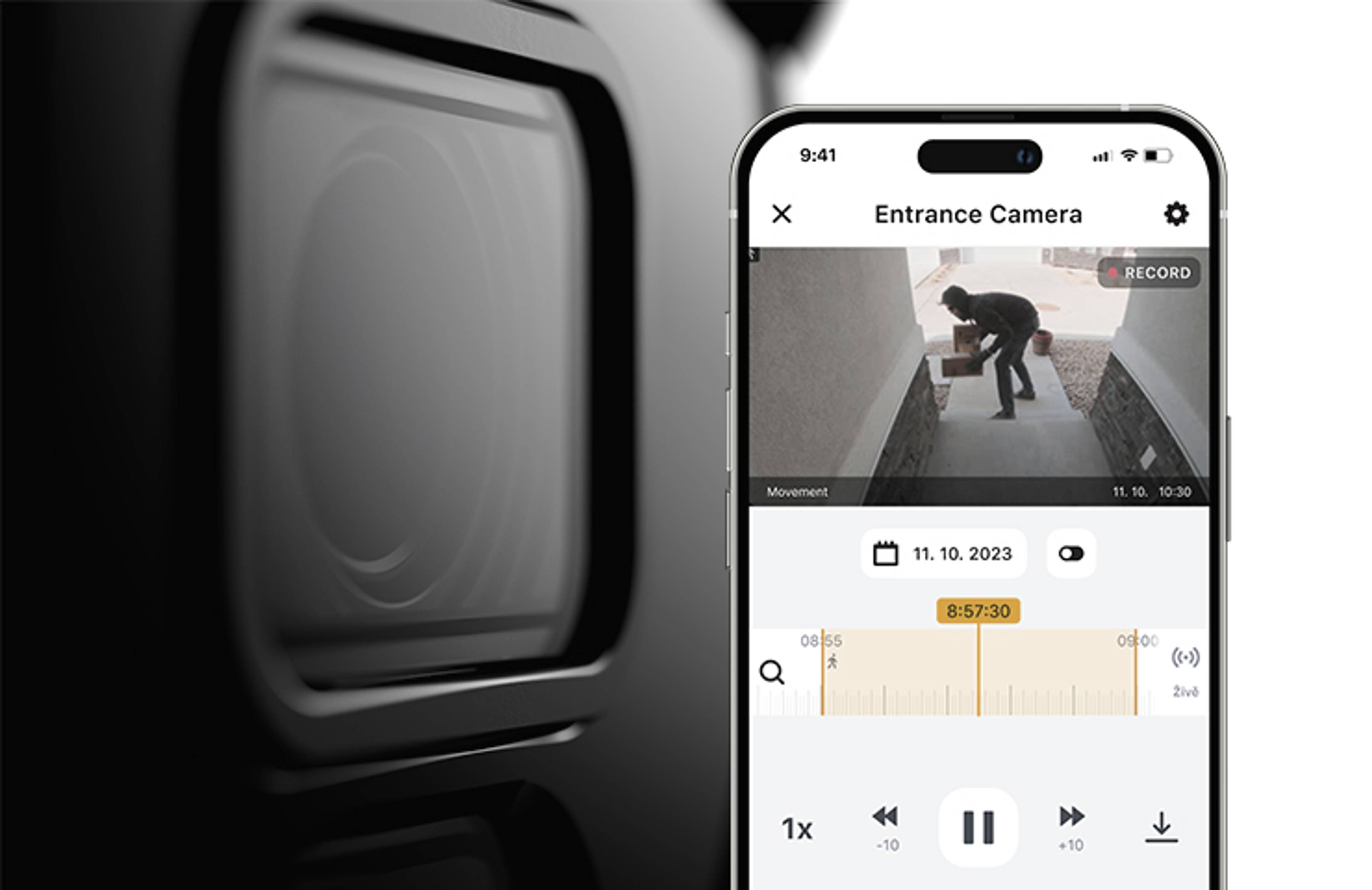

The system sends a recording to MyJABLOTRON
The user receives a minute recording of each event, which is available in the MyJABLOTRON application. He / she can thus verify the situation immediately.
The security centre will intervene
The entire system can be connected to the Security Centre, whose operators will take care of everything.
Cammera types
JI-113C
Outdoor IP camera 5MPx - turret
JI-114C
Outdoor IP camera 5MPx - bullet
JI-114C-A
Outdoor IP camera 5MPx - bullet audio
Technical Specifications
| JI-113C | JI-114C | JI-114C-A | |
|---|---|---|---|
| Product code | Outdoor IP Camera 5MPx - turret | Outdoor IP Camera 5MPx - bullet | Outdoor IP Camera 5MPx - bullet audio |
| Dimensions | 100 × 100 × 90 mm | 151 × 71 × 71 mm | 153 × 71 × 71 mm |
| Power supply | 12 V DC alternatively from PoE data connection (according to 802.3 af) 48 V | ||
| IR illumination range | Max. 30 m | Max. 30 m | Max. 25 m |
| Detection angle | 91° | 91° | 88° |
| Resolution | 5 MPx (2880 × 1620 px) | ||
How to get new JABLOTRON cameras?
Contact your installation partner for a quote for new cameras.
